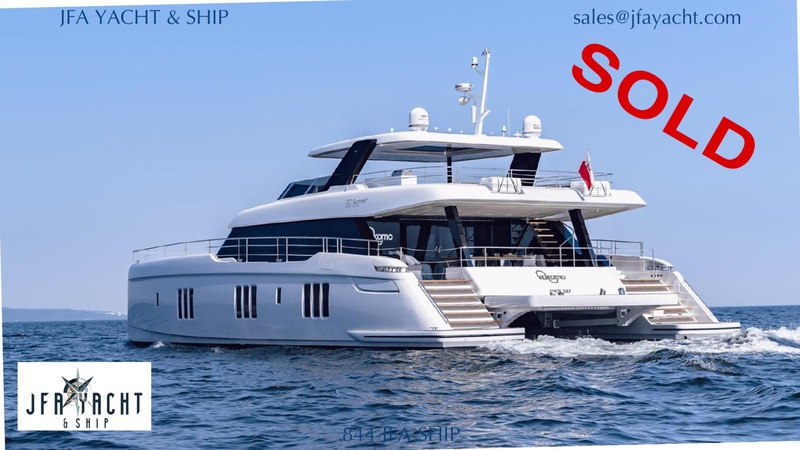

Kokomo

• 2 engines 1200hp (MAN) with pair of propellers instead of 575hp John Deere
• Extension of fuel tanks to 2x 8000L (from 2x 5000L)
• 2 electric pumps for changing the oil
• Anti-vibration system (thrust bearing with CV joint)
• Bow thrusters (2 pcs)
• JMS System
• Proportional thrusters
• Trolling valves on gearboxes
• Water sensors for fuel filters
• Rope cutters on the propeller shafts

3 Deck Gear

Standard

• Manual gangway
• Flush hatches on deck for forepeaks
• 1 swim ladder on the skirt
• 2 aft capstans for mooring
• Garage for water toys

Extra options

• Length overall: 23,96m
• Beam overall: 12,22m
• Draft maximum. (lightship): 1,80m
• Main engines: 2x 1200hp
• Fuel capacity: 2x 8000L
• Water capacity: 2x 800L
• Number of people (category A): 12+4
• Composite hard top bimini on the flybridge with windows and integrated lights
• Bimini windshield – transparent canvas only for the front
• Bimini windshield – transparent canvas for 3 more sides
• Rigid wave breaking window on flybridge
• Upgrade to hydraulic gangway
• Shower head on the cockpit ceiling with mixing valve
• Covers set (navigation station, flybridge tables)
• Jet ski launching system for garage

4 – ELECTRICAL SYSTEMS

Standard

• AC-230V 50Hz 1ph: main switchboard with panel extension (semi-automatic change over shore-generators), 2 chargers (24V/100A), inverter (220V/50Hz/5000W), 2x shore power inlet 63A, 3x socket (230 V) in cabins, 4 sockets in saloon, 4 in dining area, 4 in galley
• DC-25.6V: main switchboard, 14 kWh Lithium batterie bank (25.6 Volts), starting batteries, DC distribution, wiring
• Generator 19KVA
• Additional Inverter 120V/60Hz/3000W + 10 sockets

Extra options

• Upgrade DC-24V: main switchboard, upgrade to 1200Ah from 800Ah
• Upgrade to 2 parallel working gensets 2x 20,5KVA 50Hz 230V
• Night-Mode DC-25.6V Lithium batterie bank upgrade from 14 kWh to 84 kWh including upgrade of charger and 230
• Volts inverter

5 LIGHTS

Standard

• Lights with LED lamps
• Domotic system for lights, controls, and D/C system, including dimmers for ceiling lights (Domotic system function):
• Control:
• Lighting with dimming
• Navigation lights
• Control of valves and pumps of black water
• Measurement:
• Tank level monitoring with alarm: fresh water, black water, fuel
• Battery and Victron charger monitoring with alarm: starter/ main batteries bank/ emergency batteries (if installed)
• Measurement of temperature in the engine room
• Lights in the engine rooms
• Exterior lighting package, upgrade from standard (under lighting of fixed furniture on flybridge and cockpit – LED stripe in white; cockpit ceiling two LED stripes surrounding in white; LED white stripes instead of spot lights on skirts)

Extra options

• Underwater lights LED, one color to be chosen along with localization: white 4x

6 – NAVIGATION & ELECTRONICS

Standard

• Compass (size 135mm)
• Chronometer and barometer
• Navigation pack Raymarine: 2x Axiom PRO 9′, Radar RD418HD 18″ 4kW 456mm digital radome radar, evolution autopilot, AIS700, depth, speed & temp sensor, wind sensor, GPS, Ray90 VHF with dual station, searchlight + control unit, fog horn

Extra options

• Upgrade RAYMARINE: 2x Axiom XL 16′, Radar RD424HD 24″ 4kW 608mm digital radome radar, evolution autopilot, AIS700, depth, speed & temp sensor, , wind sensor, GPS, Ray90 VHF with dual station, searchlight + control unit, fog horn
• Wireless autopilot controller
• Satellite Communication System
• External cameras with color and night vision- 2 pcs

7- PLUMBING

Standard

• Fresh water: 2x 800L with level indicators, pressurized pump, 2 water heaters of 100L each
• Black water: 1x 500L tank with pump discharge system, electric pump
• 4 electrical bilge pumps
• 2 manual bilge pump
• Hand shower on deck
• 1 pressurized fresh water outlet on cockpit (female quick-coupling snap connector)
• Electric toilets 24V in bathrooms with fresh water flush

Extra options

• Watermaker 280l/h 230V
• Fresh water inlet (connection between the boat’s water network and the shore water supply)
• Fresh water outlet for washing the deck
• Retractable hose (5mb) with shower head in chain locker for chain wash
• Additional Bilge pump in forepeak

8 – COMFORT ON BOARD

Standard

• Electric blinds (plisse) in saloon
• Manual roman blinds in cabins
• Curtains and backdrop for entrance door
• Air conditioning installation in the saloon, galley and cabins: 70 000 BTU/h
• Galley appliances package (Bosch or/and Siemens): refrigerator with freezer, dishwasher, electric oven, electric stove cooker hood
• Washer&dryer (one item) (Bosch or Siemens)
• Sunpad area on aft flybridge
• Stainless steel sliding entrance door
• Pantograph electric door to front deck

Extra options

• Manual, recessed blinds (plisse) in cabins
• Upgrade Air Conditioning to 170 000 BTU/h
• Washing machine and dryer as separate units Miele, upgrade from standard
• Widescreen LED TV 55″ with installation (saloon)
• Lifting system up/down (if possible depend on layout)
• Safe 2x
• Electric diving compressor 100L/min 90-330 bar
• Diving bottles holder
• Multi-functional full-size rest-lounge with foldable backrest
• Front deck cushions
• Bar module on flybridge
• Sink with retractable faucet for the bar module
• Ice maker for the bar module
• Low fridge for the bar module
• Electric Stainless Steel BBQ

9 FINISHING

Standard

• Design fee (1 day with interior design + 3 renders – saloon, owner’s cabin and owner’s head
• Interior wall and ceiling panels, sofas, headboards and beds in skai (artificial leather) or easy-clean fabrics*
• Wooden furniture panels category A with mat polyurethan lacquer
• Vinyl floor in saloon and cabins
• Decorative rug/carpet in saloon
• Hull and deck in white gelcoat

Extra options

• Wood finished with mat polyester lacquer
• Wooden floor (plywood + natural veneer) in saloon
• Wooden floor (plywood + natural veneer) in cabins
• Carpet in master cabins
• Cockpit and skirts covered with teak
• Deck covered with teak
• Flybridge covered with teak
• Hydraulic platform covered with teak
• Fitted forepeak. Comfort: bed and bathroom with composite painted wall
• Air condition for forepeak (need air condition installation)
• Side of hulls painted in colored gelcoat (light colors)

10 – SAFETY EQUIPMENT

Standard

• Manual fire extinguishing system in the engine rooms

Extra options

• Complete rescue equipment with life-rafts for 12 persons
• Adaptation to commercial requirements, MCA cat 0 (Red Ensign)
• Automatic fire extinguishing system in the engine rooms (included in commercial adaptation)
• Gas detection system + alarm (included in MCA)
• EPIRB (included in option MCA)
• Satellite tracking system (excluding fees)

11 – MOORINGS & TOOLS

Standard

• Windlass 3000W 24V
• Anchor CQR 81kg + 80m galvanized chain (diameter 14mm)
• Additional anchor 20kg + 20m galvanized chain (diameter 10mm)

Extra options

• 50m tow line
• Windlass upgrade to 3500W, anchor CQR 90kg + 100m galvanized chain (diameter 14mm)
• Additional windlass 3500W with anchor Ultra Marine 100kg + 100m galvanized chain (diameter 14mm) (included in 10.2)
• Mooring set (8x fender, 4x mooring rope)

12 – STEERING SYSTEM

Standard

• Bronze rudders
• Steering wheel
• Hydraulic steering system
• 2 emergency tillers

13 TOYS

• SeaDoo GTX 300 limited model 2021
• Castoldi jettender 16
• Seabob 5S
• Skies, mono skies, wakeboard
• Sub
• Diving gear
• Diving bottles
• Fishing rods
• Windsurf gear

14 – MISC/ Special Requests

• Day head in aft cockpit
• Ladder for starboard stair for easy access in and out of water
• Night and heat sensor Flir M364C
• Under water sonar RVX1000 SIDE VISION AND DOWN VISION + TRANSDUCER RV-200
• Alternators
• Anti-theft alarm Satel Integra 64Plus system (the same one for the Fire Detection System) extended with the ETHERNET and GSM module to send notifications to the phone (Integra Control application)
• Special lamps in all cabins and saloon
