Length Overall (L.O.A.): 170.61 feet (52.00 meters)
Beam (molded): 29.60 feet ( 9.00 meters)
Draft (loaded): 10.00 feet ( 3.05 meters)
Tonnage: 628 gross tons; 188 net tons; 653 displacement tons
Fuel Capacity: 31,176 US Gallons (118,000 liters)
Water Capacity: 4,755 US Gallons ( 17,997 liters)
Watermakers: (1) @ 4,808 US Gallons ( 18,200 liters)
Lube Oil: 557 US Gallons ( 2,110 liters)
Waste Oil: 520 US Gallons ( 1,970 liters)
Waste Water: 1,442 US Gallons ( 5,460 liters)
Maximum: 15.0 knots 400 liters/hr 3,200 NM 385
Cruising: 12.5 knots 280 liters/hr 3,950 NM 325
Economical: 11.0 knots 220 liters/hr 5,000 NM 290
3. MACHINERY
3.1 Main Engines
Engine Type: (2) Cummins KTA 38-M2 diesels @ 1,200 Hp each
Gearboxes for Main Engines: Reintjes WAF 542 Ratio: 4.45:1
Drive: Lips Fixed pitch propellers
3.2 Generators & Electricity
Generators: (2) 145 kW John Deer Generators (New July 2014)
(1) 50 kW Cummins 4B 3.9 emergency generator
Generator Fuel Consumption: 520 liters/day per Generator
Shore Power: (2) 62.5 KVA Atlas shore power SPA 3 Phase
Output volts 400 output amps: 230/400/50 Hz
Input Volt: Atlas shore power conversion system
Batteries: Main engine start: air; charged: compressors
Generator start: 24V batteries charged Mastervolt charger
3.3 Air Conditioning:
Type: Marine Air – 52 Air handlers
3.4 Other Machinery
Watermakers: (1) Watermakers WMSQ-45000 (rebuilt Feb/2024)
(1) Watermaker WMSQ-3000 (rebuilt Feb/2024)
Stabilizers: Koopnautic SR3575/4080 SVA (At Anchor)
Bow Thruster: HRP 200-60E 110 kW Hp (rebuilt 02/2024)
Steering System: Rolls Royce/Tenjford JR 2.160 ram type
Fuel Separator & Filtration: Alfa Laval MIB 303
Sewage System: Headhunter
Helm/Control Stations: (4) Located bridge/Port wing station/Stbd wing station/
Emergency Local Engine Control
Completely renewed new control system (Oct/2022)
4. COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS
4.1 Communication Systems
VSAT SeaTel VSAT
SATcom: (1) new 2022 Iridium LT-3100s GMDSS system
Starlink: (2) new 2022 Starlink Maritime installed onboard
GSM internet: (2) new 2022 PEPWAVE 5G antennas
Telephone System: Panasonic
SSB: Sailor 6301 MF/HF
VHF Fixed: (1) Furuno FM8800S DSC-VHF
(1) Sailor RT4822 VHF-DSC
VHF Handheld: (2) Icom IC-M87
Cellular Phone System: (3) + Globesurfer
Intercom: Panasonic
Internal Ship’s Communication: Phontech
Hattera Screens: (1) 22” Touch screen, (4) 19” screens
Furuno Sat C: (1) new 2017 with Furuno printer
4.2 Navigation Systems
Radar: (1) Furuno 2110 X-Band; Range 120 nm
(1) Furuno 2110 S-Band; Range 120 nm
Gyrocompass: (1) C-Plath Navigat MK1 (new Nov 2015)
Magnetic Compass: (1) C-Plath
Auto Pilot: (1) C-Plath Navipilot V HSC
Depth Sounder: (1) Furuno ED2200 wing station repeaters
Video Sounder: (2) Furuno FCV-585 with (2) transducers fwd and (1) aft
GPS: (2) Simrad MX 612
Ships Computer: (2) Nav PC Custom; (4) HP PC; (1) HP PC
IT Server: (3) New servers and complete new state of the art IT/WI-FI throughout vessel
Printers: (4) HP
Chart Plotter: (2) new 2023 Wartsila RS8 full ECDIS
Chart Plotter (1) Maxsea new September 2017
Wind Indicator: (1) Thomas Walker (relative) + Furuno RD-30 weather station
Speed Indicator: (1) C-Plath Naviknot III speed log
Navtex: (1) Furuno NX-500
AIS: (1) Furuno FA-150 universal
4.3 Entertainment System:
Central Ship’s Audio: Complete new A/V throughout vessel e.g. Central system includes a Kaleidescape server linked to a new RTI control system. In addition there are new Mini iPads throughout the vessel for controlling the
A/V and music server in addition to public areas (Party Mode), Apple TV, airplay.
All lower Guest cabins A/V systems are in two individual racks with dual SAT TV/DVD/Kaleidescape
(Complete new AV system July 2014)
All apple tv devices renewed Mar/2023
All access points renewed Mar/2023
Audio/Video Equipment
TV’s:
(2) KVH HD 11 TV antenna’s (new 2016)
(1) Samsung Flatscreen 26’ – Captain cabin (multisystem)
(12) Samsung 22’ LCD/DVD – 6 Crew cabins (multisystem)
(1) Samsung 50” curve – Crew mess
(1) Samsung 85” – Skylounge
(1) Samsung65” – Main salon
(1) Samsung 55” – Master cabin
(1) Samsung 55” Master office
(2) Samsung 42” – Guest cabins
(2) Samsung 33” – Guest cabins
(1) Marantz – Crew mess
(1) Marantz – Skylounge (new 2017)
(4) Marantz – Guest cabins
Stereos: (1) Marantz – Skylounge
(1) Marantz – Master cabin
(1) Marantz – Main salon
iPod Stations: (2) Bridge
5. GALLEY & LAUNDRY EQUIPMENT
5.1 Main Galley Equipment
Cooking Equipment: (1) Schott 4-burner range
(1) Wolf 30’’ E Series convection steam oven (CSO30PE/S/PH) (new Feb/2024)
(1) Mielie oven H 2455 BP active
Refrigeration/Freezer: (2) Metos MMC 600 refrigerators
(1) Liebherr Freezer
(1) Dometic wine fridge (Pantry)
Dishwasher: (1) Winterhalter UC Series dishwasher
Other: (1) Dumbwaiter located galley/pantry/Sundeck
General Galley: Built in deep fryer, built in grill, Kitchen Aid mixer, Hans Dampf Combi steamer 6.23, Paco Jet ice cream maker
5.2 Crew Galley/Mess Equipment
Cooking Equipment: (1) Severin 900 microwave
Refrigeration/Freezer: (1) Smeg fridge
(1) Liebherr 4177 wine cooler
Other: (1) Miele 67856 dishwasher
(1) Uson Marine AB trash compactor
5.3 Additional Galley Equipment
Refrigeration/Freezer: Fridina BV built in walk-in 2.7m2 refrigerator
Fridina BV built in walk-in 1.65m2 freezer
Other: (4) Ice machines (1) main deck aft
(1) sundeck
(1) pantry
(1) Lazerette
5.4 Laundry Equipment:
Main Laundry Equipment (3) Miele Professional dryers
(1) Sanuzzi Lindo 100 Washers
(2) Miele Washers
6. TENDERS & TOYS
Tenders: (1) Novurania 24’ with diesel Volvo Inboard
(Fully refurbished 2023. New pontoon, engine, drive train, electronics including wiring)
Dive Gear and Toys: (1) Bauer C2E dive compressor with 5 full dive sets
(2) Yamaha Delux 3 seater wave runners 2016
(1) New FunAir 26ft slide
(1) New Inflatable Sea pool with jellyfish net
(4) Inflatable paddleboards
(4) brand new Inflatable kyaks
(2 x 2 person / 2 x 1 person)
(2) Seabob F5
(2) Lyft E-foil boards
(2) Towable chariots
(2) Wakeboards
(1) pair water skis
(8) Deep sea and jigging Fishing gear
7. DECK EQUIPMENT
Anchor Windlass System: Steen, single motor horizontal axis
Aft Warping Capstans: (4) Steen; (2) Fwd and (2) Aft
Anchors: (2) Pool
Anchor Chain: 22mm X 630’ (192m)
Boat Crane and Davits: (2) Vandriel (1 fwd, 1 aft) – 2000 kg capacity
Accommodation Ladders: Stbd side electric-hydraulic (Overhauled 2022)
Stern Boarding Gangway: Aljo Yacht equipment, electric-hydraulic
(Overhauled, including paint, new teak and lights 2024)
Spotlights: (2) Handheld Fenix LR80R
Jacuzzi: Located on Sundeck for 6-8 people (Fully refurbished 2023 including paint, jets, lights, all pumps, motors, heater, wiring, plumbing)
8. SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT
8.1 Security Equipment:
CCTV System: Luma surveillance system (New 2020)
Cameras: (16) Engine room, Port/Stbd side decks, Aft deck, Mast, Bridge deck fwd and aft, Swim platform
Monitors: (3) Radio room, Crew mess, Bridge
Deck Sensors: Palladium Technologies; Three zones of deck sensors
Biometric Door Locks: (2) Biometric door entrances, Guest door, Crew door
Ship’s Safe: (6) Guest cabins, Master cabin, Captain’s cabin
8.2 Fire Fighting Equipment:
Fire Control System: (2) Fixed CO2, engine room + galley range hood
Various smoke detectors, (41) smoke, (5) heat, (3) gas
(1) Sprinkler system throughout vessel (All machinery, control, and salient components renewed
Including new sprinkler pump and new stainless steel
Freshwater water tanks 2024)
(2) Asbestos firefighting suits – Viking Professional fire fighting suits, BA locker
(14) Seawater firefighting stations within 15m of any point on the vessel
Fire and Bilge Fixed Systems: (2) Fire/Bilge pumps (renewed Feb/2024)
(1) Emergency Fire/Bilge pump (renewed Feb/2024)
(15) Pneumatic control valves (renewed 2024)
Portable CO2: (9) Near major electrical installations
Fire Extinguishers: (25) Various locations throughout vessel
Alarms: All door entries are connected to the Palladium Technologies, alarm system with door sensors
Alarm Key Pad: (2) Monitors, Crew door and Radio room
8.3 Safety Equipment
Life Rafts: (4) RFD Surviva MKII, 16-person, Class A
Life Rings: (8) Solas approved
EPIRBS: (2) ACR Globalfix with built in GPS
Flares: Assorted
Line Throwers: (4) Pains Wessex linethrower 250
Medical Equipment: Medlink supplied and approved first aid and medical kits
9. ACCOMMODATIONS
Sleeps up to 12 in the owner’s party in 5 staterooms with crew accommodations for up to 14 in 7 cabins
10. COMMENTS

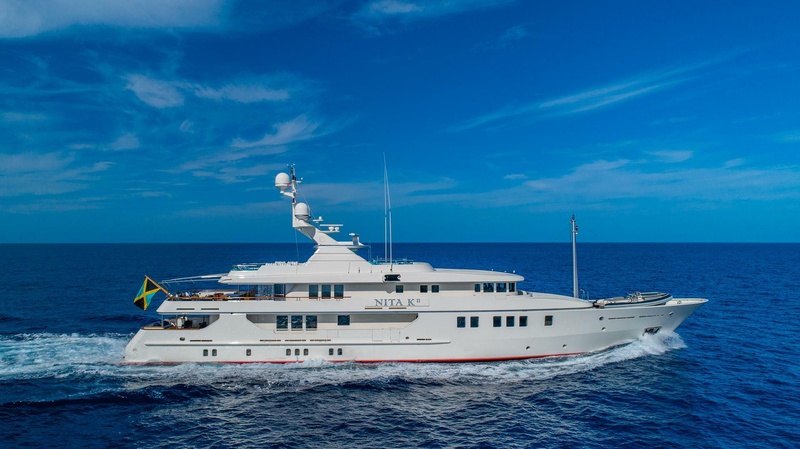

NITA K II is in impeccable condition in all respects, and is cruise-ready.
· Stunning, custom interior design by Alberto Pinto and Laura Sessa
· Accommodations up to 12 guests in 5 staterooms, including a full-beam master stateroom with an attached lo
